LD-600 Advanced Anti Drone System

Introducing the LD-600, a pinnacle in anti-drone defence systems, meticulously engineered for uncompromising protection of stationary installations and armoured divisions. This system delivers a full spectrum defence, casting an extensive frequency net that includes GPS, GLONASS, 2.4 GHz, 5.8 GHz, 900 MHz, and 400 MHz, establishing a vigilant 360-degree protective shield.

Designed to be indefatigable, the LD-600 boasts around-the-clock operational readiness, ensuring continuous defence day and night. Its superior IP rating signifies its exceptional resilience against adverse weather, certifying its reliability in the harshest of operational conditions with an impressive range exceeding 15-20 km.

The LD-600 is equipped with sophisticated radar and RF sensor technology, which provides automated threat detection and neutralization, affirming its suitability for high-stakes missions requiring minimal human intervention. Versatility is at its core, with dual-power compatibility, offering the flexibility to be powered by either a 24-volt or 220-volt source.

As a modular system, the LD-600 offers optional enhancements to extend its capabilities further, including additional frequency bands for comprehensive long-range protection. The LD-600 is not just an anti-drone system; it is a robust, expandable defence solution, ensuring secure skies for today's and tomorrow's mission-critical operations.

1.Smart Spectrum Adaptation: The LD-600 features a sophisticated analog Smart Spectrum Adaptation system that meticulously calibrates its operational frequency bands in real-time. This innovative function is designed to circumvent disruptions to allied communication networks, allowing for the LD-600's jamming and detection mechanisms to operate in harmony with friendly forces. By persistently monitoring the electronic battlefield and intelligently modifying its frequency outputs, the LD-600 ensures peak functionality amidst the intricacies of electronic warfare. This proactive adaptation maintains a decisive edge over hostile drone advances and strategies, significantly curtailing the likelihood of unintended electronic interference. The inclusion of this feature elevates the LD-600's status to that of a critical component in contemporary and future defence and security frameworks.

2. Advanced Passive Detection: The LD-600 stands out with its superior passive signal detection technology, ensuring silent operation while effectively identifying drone signatures. This system excels in covertly detecting and cataloguing drones based on their unique electronic identifiers, offering a strategic advantage without alerting adversaries.

3. Precision Direction Finding: Leveraging cutting-edge directional accuracy, our system pinpoints the exact location of UAV threats with unmatched precision. This enables targeted countermeasures, ensuring efficient neutralization of threats with minimal collateral impact.

4. Sophisticated Identification Algorithms: The LD-600's identification capabilities extend beyond mere detection, distinguishing between drone models, even within the same brand and frequency band, with extraordinary precision. This feature ensures that counteractions are exceptionally targeted and effective against identified threats.

5. Autonomous Operation: Empowered with full-autonomy mode, the LD-600 guarantees round-the-clock surveillance and threat mitigation without the need for constant human oversight. Its automatic detection and alerting mechanisms provide continuous protection, adapting to emerging threats in real-time.

6. Multi-Layered Defence Strategy: The system's defence capabilities are augmented by a multi-faceted approach that combines narrowband frequency hopping and low-power precise jamming with wideband high-power disruption techniques. This layered defence ensures robust protection against a wide range of unauthorized drone activities.

7. Intelligent Black & White Listing: Simplify operational protocols with our intuitive interface, allowing for the easy categorization of drones. Authorized (white-listed) drones proceed unhindered, while unauthorized (black-listed) drones are automatically targeted, reducing false alarms and focusing resources on genuine threats.

8. Expansive Drone Model Library: Our comprehensive database includes all DJI models, major commercial brands, and custom-built drones, ensuring detection and countermeasure capabilities cover more than 98% of drones in operation worldwide. Continuous updates to our library mean the system remains effective against new and evolving drone technologies.

9. Enhanced RF Passive Radar Specifications: With full frequency coverage from 30MHz to 6GHz and a detection distance reaching a 5km radius, our system provides unparalleled situational awareness. The radar's high sensitivity and omnidirectional capabilities ensure that no drone activity goes unnoticed.

10. Powerful RF Jammer Specifications: Featuring a robust jamming range that extends over 10km and includes multiple frequency bands with up to 1250 Watts of power, the LD-600 can neutralize threats well before they reach sensitive areas. Its diverse broadcasting capabilities, combined with sectoral jamming techniques, offer a comprehensive shield against drone intrusions.

11. State-of-the-Art Command Centre Software: The Command Centre (C2) software integrates seamlessly with the LD-600, providing a user-friendly interface for real-time threat analysis, tracking, and management. Enhanced with customizable views and detailed analytics, operators can efficiently coordinate defence measures and assess potential vulnerabilities.

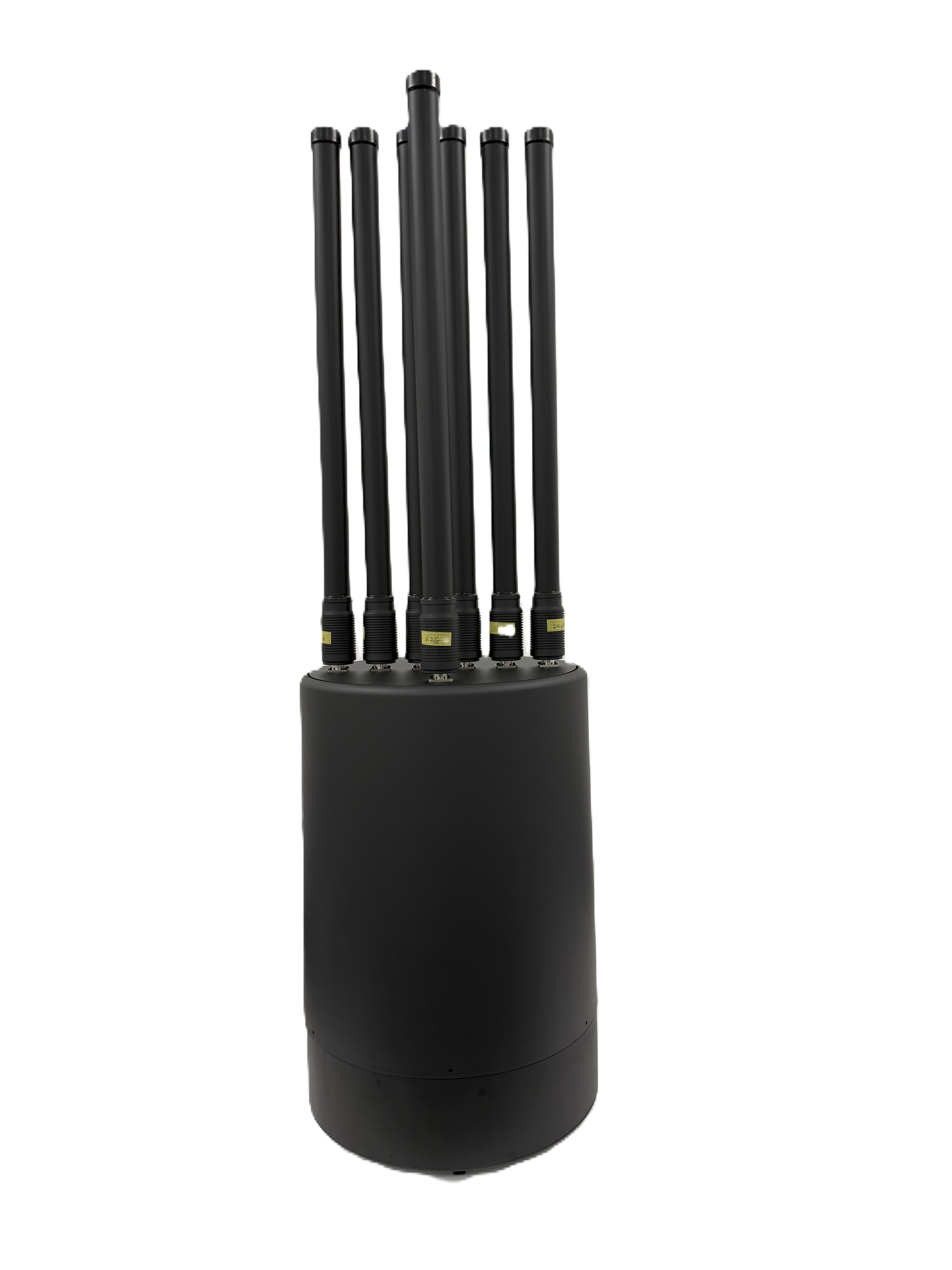

1. Broad Spectrum Coverage: The radar's capability to support a full frequency range from 30MHz to 6GHz sets a new industry standard for comprehensive drone detection. This wide spectrum ensures the system can monitor and analyse signals from a vast array of drone models, including the most advanced and recently developed.

2. Extended Detection Distance: With an impressive radius of 5km and an overall coverage scope of 10km, the radar provides an expansive surveillance area, enabling early detection of threats and ample response time to neutralize them before they pose a risk.

3.Precision and Accuracy: The radar boasts a detection accuracy of ≤3° for hovering drones and ≤10° for moving drones, ensuring precise location tracking. This level of accuracy is critical for effectively countering UAVs with targeted measures.

4. Exceptional Sensitivity: With a sensitivity better than -115dBm (25kHz), the radar detects even the faintest drone signals, making it nearly impossible for UAVs to fly under the radar unnoticed. This sensitivity is particularly important for identifying low-power, small, or stealthy drones.

5. 360° Omnidirectional Detection: The radar's omnidirectional capability ensures complete aerial coverage, leaving no blind spots. This all-encompassing surveillance capacity is essential for maintaining a secure perimeter against all possible drone intrusions.

6. Adaptability to Various Communication Modulations: The radar's compatibility with a wide range of communication modulation methods, including FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, and FHSS, signifies its versatility in identifying and analysing drones across different communication standards.

7. High-Capacity Detection: Capable of simultaneously detecting ≥30 drones, the radar system ensures that large-scale drone swarms can be identified and tracked, providing a comprehensive overview of aerial threats in real-time.

8. Dynamic Range and Scanning Modes: A 70dB dynamic range and the ability to perform panoramic and channel scanning enable the radar to effectively manage and differentiate between multiple drone signals, enhancing detection accuracy and response strategies.

9. Reliable and Continuous Operation: Designed for 24/7 operation with a robust power supply system, the radar is built to withstand continuous use, ensuring consistent and dependable drone surveillance.

10.Compact and Durable Design: Despite its powerful capabilities, the radar maintains a compact form factor with a diameter of 346mm and a height of 431mm, and weighs ≤9kg, making it easily deployable in various environments. Its design prioritizes both performance and practicality for field operations.

1. Comprehensive Frequency Disruption: Our jammer extends its disruption capabilities across a broad range of critical frequencies:

- 400 MHz and 900 MHz Bands: Equipped with 100 Watts of power for tackling conventional communication links.
- GPS, GLONASS, BeiDou, and Galileo Frequencies: 150 Watts dedicated to neutralizing navigation signals, making it virtually impossible for drones to maintain their course or positioning.
- 2.4 GHz Band: With 250 Watts targeting one of the most common drone communication frequencies, ensuring a wide berth of disruption.
- 5.8 GHz Band: A massive 500 Watts aimed at this higher frequency band, used by more sophisticated drones for communication, rendering them inoperative.

2. Unrivaled Effective Range: An effective operational range of over 10 Km, setting a new benchmark for drone jamming technologies. This extensive range provides a protective bubble around sensitive areas, far surpassing the capabilities of conventional systems.

3.Adaptive Broadcasting Techniques: The jammer employs a mix of omnidirectional and directional broadcasting, allowing for targeted jamming operations. This strategic flexibility ensures that the jamming can be both broad, to create a barrier against incoming drones, and focused, for precision neutralization of specific threats.

4. Robust Environmental Adaptability: Rated at IP65 for ingress protection, the jammer is resilient against dust and water, enabling it to operate in a variety of environmental conditions from -20 to +60 degrees Celsius. This durability ensures reliable performance in challenging weather and operational scenarios.

5. Continuous Operation Capability: Designed for relentless use, with a power supply specification of AC220V±20 and an operating time that supports 24/7 functionality. This ensures that defenses are never down and protection is constant.

6. Sectoral Jamming Precision: The jammer introduces a methodical approach with a sectoral angle of 72 degrees, allowing for strategic targeting of threats within specific sectors. This precision enables more efficient use of power and reduces potential interference with friendly or neutral systems.

7. Seamless Integration with Radar Systems: Featuring an auto mode radar interface and a C2 (Command and Control) software interface, the jammer integrates seamlessly into the broader LD-600 Anti-Drone System. This integration facilitates coordinated detection and jamming responses, enhancing the overall effectiveness of drone defense operations.

8.Substantial Build for Maximum Durability: Weighing in at 180 kg, the jammer's substantial build underscores its robustness and stability, essential for sustained outdoor deployment and operation.

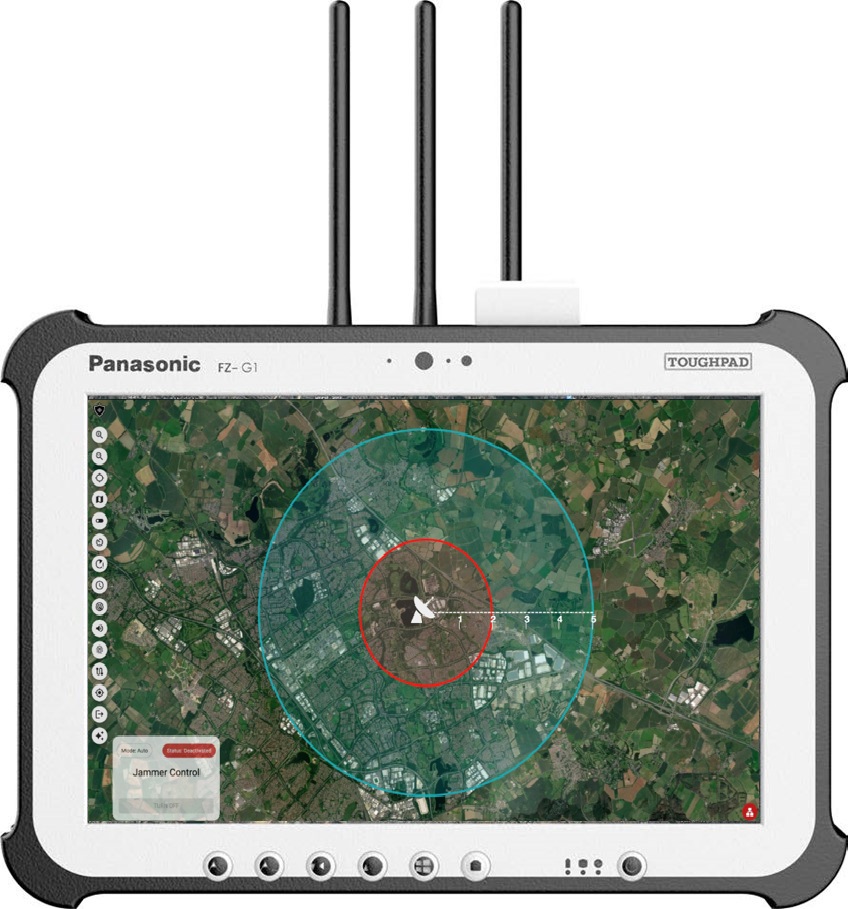

1. Intuitive Real-Time Monitoring: The C2 software offers a user-friendly interface for real-time monitoring and tracking of aerial threats. Operators can view live data feeds, enabling immediate identification and assessment of drone activities within the protected airspace.

2. Dynamic Threat Analysis: Equipped with sophisticated analytical tools, the C2 software provides comprehensive threat analysis, including trajectory prediction, threat classification, and potential impact assessment. This enables strategic decision-making based on real-time intelligence.

3. Seamless System Integration: Designed for flawless integration with the LD-600's radar and jamming components, the software ensures synchronized operation across the system. This integration facilitates coordinated detection, tracking, and neutralization strategies for unmatched efficiency.

4. Advanced Mission Planning: Operators can pre-define mission parameters and engagement rules within the software, allowing for automated responses to known threats. This feature streamlines operations and ensures rapid reaction to unauthorized drone intrusions.

5. Customizable Alert Systems: The C2 software features a customizable alert system that notifies operators of potential threats based on predefined criteria. Alerts can be tailored to specific drone behaviours, frequencies, or proximity thresholds, ensuring relevant and actionable intelligence.

6. Historical Data Analysis: With robust data logging and historical analysis capabilities, the software allows for the review of past drone encounters, providing insights into patterns, frequency, and types of drone activities. This valuable information can be used to enhance future defence strategies.

7. Secure Communication Channels: The C2 software employs encrypted communication channels to ensure secure transmission of sensitive data. This security measure protects against cyber threats and ensures the integrity of operational data.

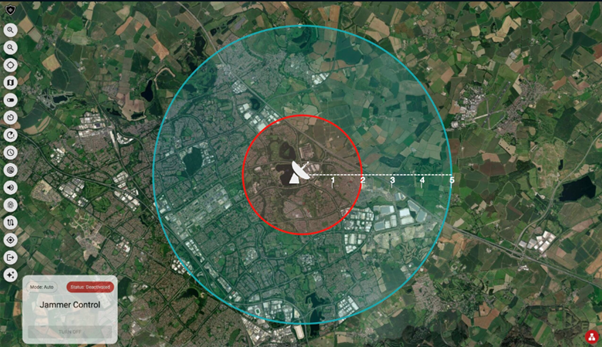

8.Advanced 3D Mapping Integration: The C2 software is integrated with cutting-edge 3D mapping technology, providing operators with a three-dimensional view of the airspace, including real-time weather overlays, terrain contours, and designated no-fly zones. This 3D perspective offers unparalleled situational awareness, enabling precise spatial analysis and strategic operational planning in a dynamic environment.

9. Scalable Architecture: Designed to accommodate growth, the C2 software's scalable architecture can easily integrate additional sensors, radars, and jamming devices as needed. This flexibility ensures that the system can evolve to meet future threats and technological advancements.

10. Remote Operation and Access: Offering remote access capabilities, the software allows operators to manage drone defence operations from any location. This feature ensures that expert intervention is possible without the need for physical presence, enhancing operational flexibility and responsiveness.
